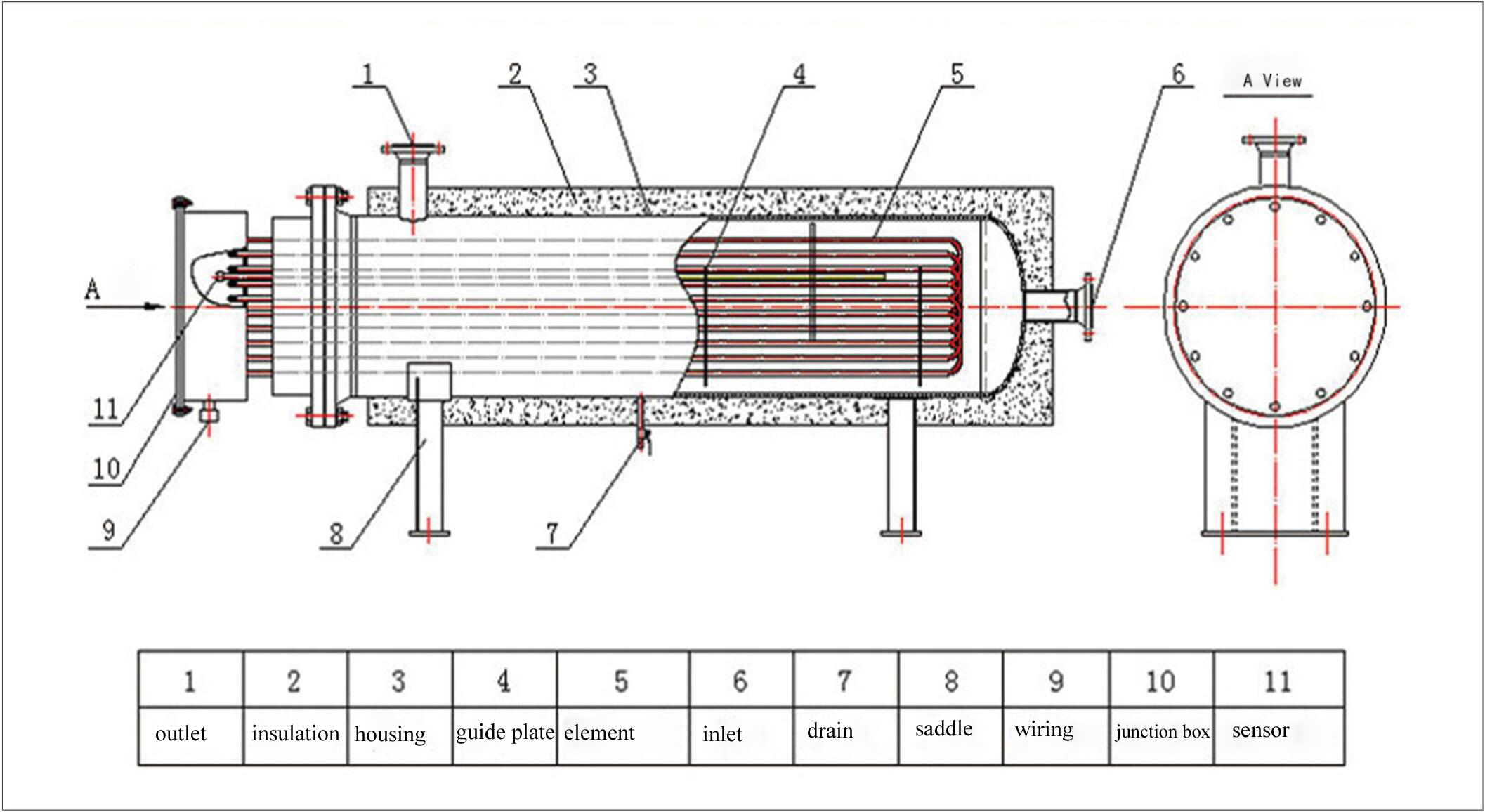

The pipeline heater is composed of multi branch tubular electric heating elements, cylinder, flow guide plate and other parts. Tubular electric heating element is to put high temperature resistance wire into the metal pipe, and tightly fill the gap with crystalline magnesia powder with good insulation and thermal conductivity. The tubular electric heating element is used as the heating element, which has the characteristics of advanced structure, high heating efficiency, good mechanical strength, corrosion resistance, wear resistance, etc. A guide plate is installed in the cylinder to make the gas and liquid evenly heated during circulation. The tubular electric heater is mainly used to heat the required medium from the initial temperature to the required temperature. It has been widely used in many scientific research and production laboratories such as aerospace, melt blown nonwovens, film, chemical industry and colleges and universities. The heating element of the heater is a stainless-steel electric heating tube. The heater cavity is equipped with multiple baffles, which can extend the retaining time of air in the heater cavity to improve the heat exchange efficiency. Proper increase of the number of heating tubes and the installed power of air heaters can shorten the heating time of the production line. The electric heater is mainly used for heating liquid and air, such as water, heat transfer oil and air. The materials are carbon steel and stainless steel, which have the advantages of high mechanical strength, heat resistance, corrosion resistance, and not easy to scale

1.

Features :

1.High temperature: the maximum temperature can reach 850 °C, while the casing temperature is only about 50 °C.

2. High heating efficiency: up to 95%.

3. Fast heating and cooling speed: up to 10 °C/s, fast and stable adjustment. The phenomenon of temperature leading and lagging is eliminated, and the temperature is automatically controlled without drift.

4. Stable performance: the heating element is made of special alloy material, which has good mechanical properties and strength under the impact of high-pressure air flow, and can be continuously heating for a long time.

5. Durable: The service life can reach more than ten years according to the normal process.

6. Small size: less space occupation, suitable for various installation sites.

7. Customizable: the shape could be designed according to customer requirements, and the power of a single unit ranges from 2kw to 10000kw
