Electric heating hot oil heater is also known as heat transfer oil electric heater, is a new, safe, efficient, energy-saving, low pressure (normal pressure or lower pressure) and special industrial furnace that can provide high temperature heat energy. It is a DC type special industrial furnace that uses electricity as the heat source, heat transfer oil as the heat carrier, and uses circulating oil pumps to force the liquid phase to circulate, transfer heat energy to the heating equipment, and then return to the reheating equipment, Raise the temperature of the heated object to meet the process temperature requirements. The electric heating oil furnace system is composed of an electric heater, an organic heat carrier furnace, a heat exchanger (configurable), a control cabinet, a hot oil pump, an expansion tank, etc., which can be used by users only by connecting the power supply, the inlet and outlet pipes of the medium, and some exhaust expansion pipes.

The heat transfer oil heater of our company uses a digital temperature controller to control the temperature. It has the functions of overheating alarm, low oil level alarm and over pressure alarm. It is an efficient and energy-saving heating equipment in the chemical, petroleum, machinery, printing and dyeing, food, shipping, textile, filming, and other industries.

Feature

1.     Environment friendly: very little flue gas emission, no pollution and heat pollution.

2.     Energy saving: there is no heat loss of steam boiler such as running, emitting, dropping, and leaking, and the heat utilization rate reaches 95% and energy saving is about 40%.

3.     Less investment: no water treatment equipment and auxiliary equipment, no boiler building, boiler worker and fuel storage warehouse are required, and the investment in the whole system is less.

4.     Safety: Since the system can only bear the pump pressure, there is no explosion risk, so it is safer. The main heating power supply adopts solid state module without contact point and switching circuit, which can adapt to frequent switching and interfere with the power supply network. It has a linkage protection mechanism against dry burning, over load, overheating, etc.

5.     Stable heat source: under normal pressure, it can output hot oil up to 350 ° C for thermal users, and the precision can reach ± 1 ° C by using PID self-tuning intelligent temperature control technology.

6.     It is widely used in various heat demanding industries such as high temperature forming, plate heating, rubber, drying, printing and dyeing, chemical industry, plywood production, waterproof coiled material production, asphalt heating, non-woven hot rolling machine, glass fiber reinforced plastic hot press, mold, drying room, oven, etc.

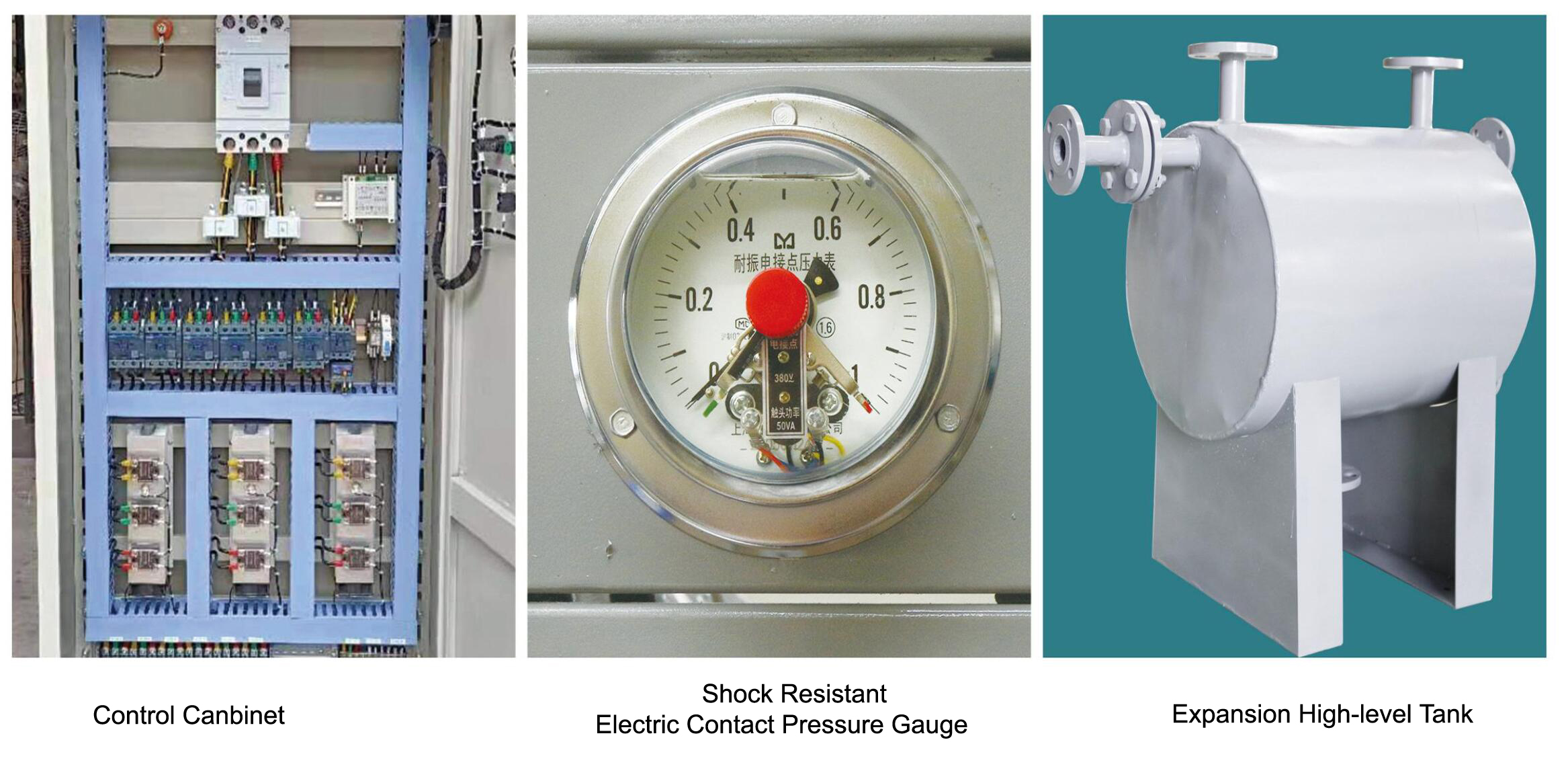

Details
